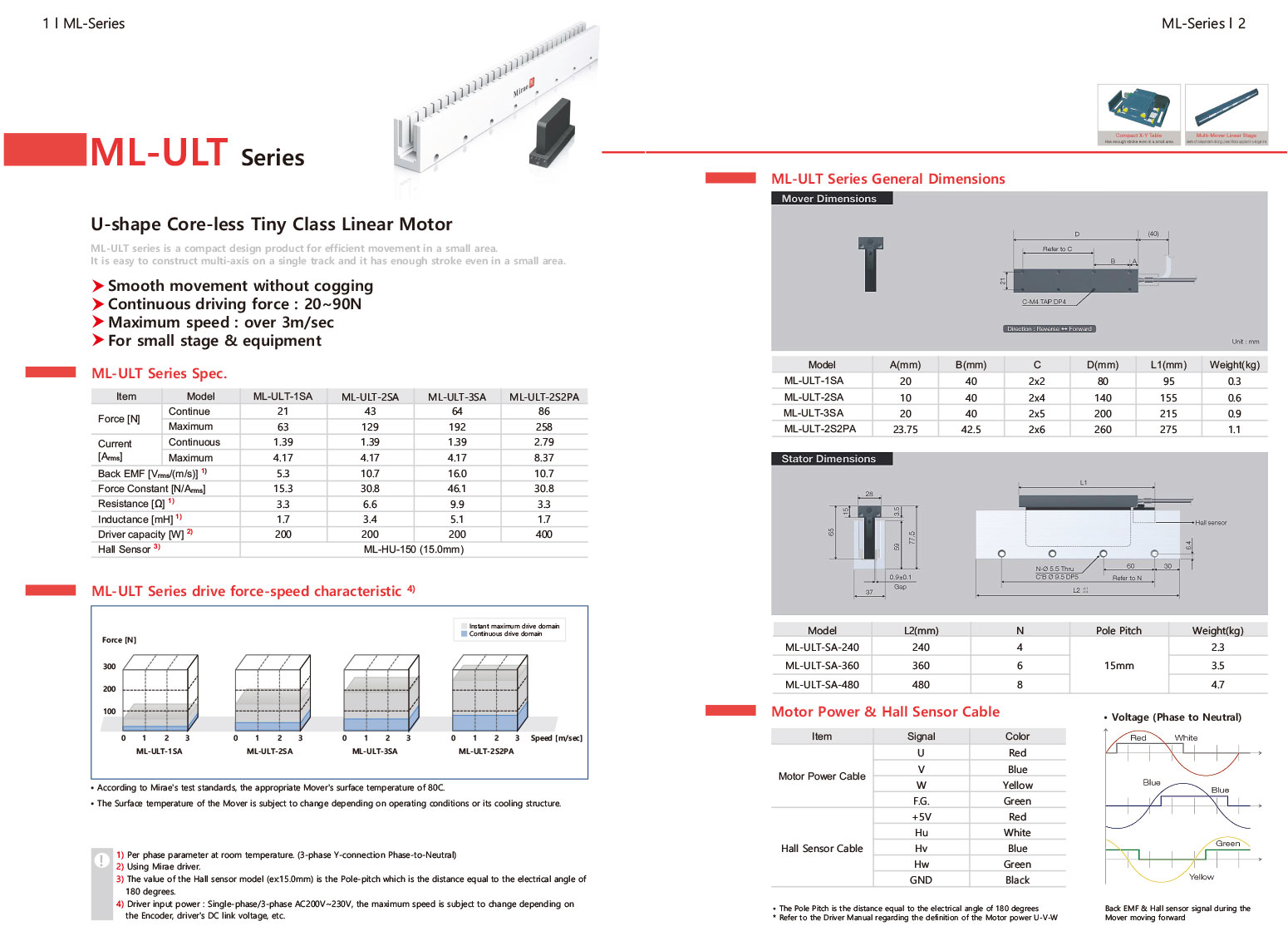

01ML-ULT Series
U-shape Core-less Tiny Class Linear Motor
- ML-ULT series is a compact design product for efficient movement in a small area. It is easy to construct multi-axis on a single track and it has enough stroke even in a small area.
- - Smooth movement without cogging
- - Continuous driving force : 20~90N
- - Maximum speed : over 3m/sec
- - For small stage & equipment

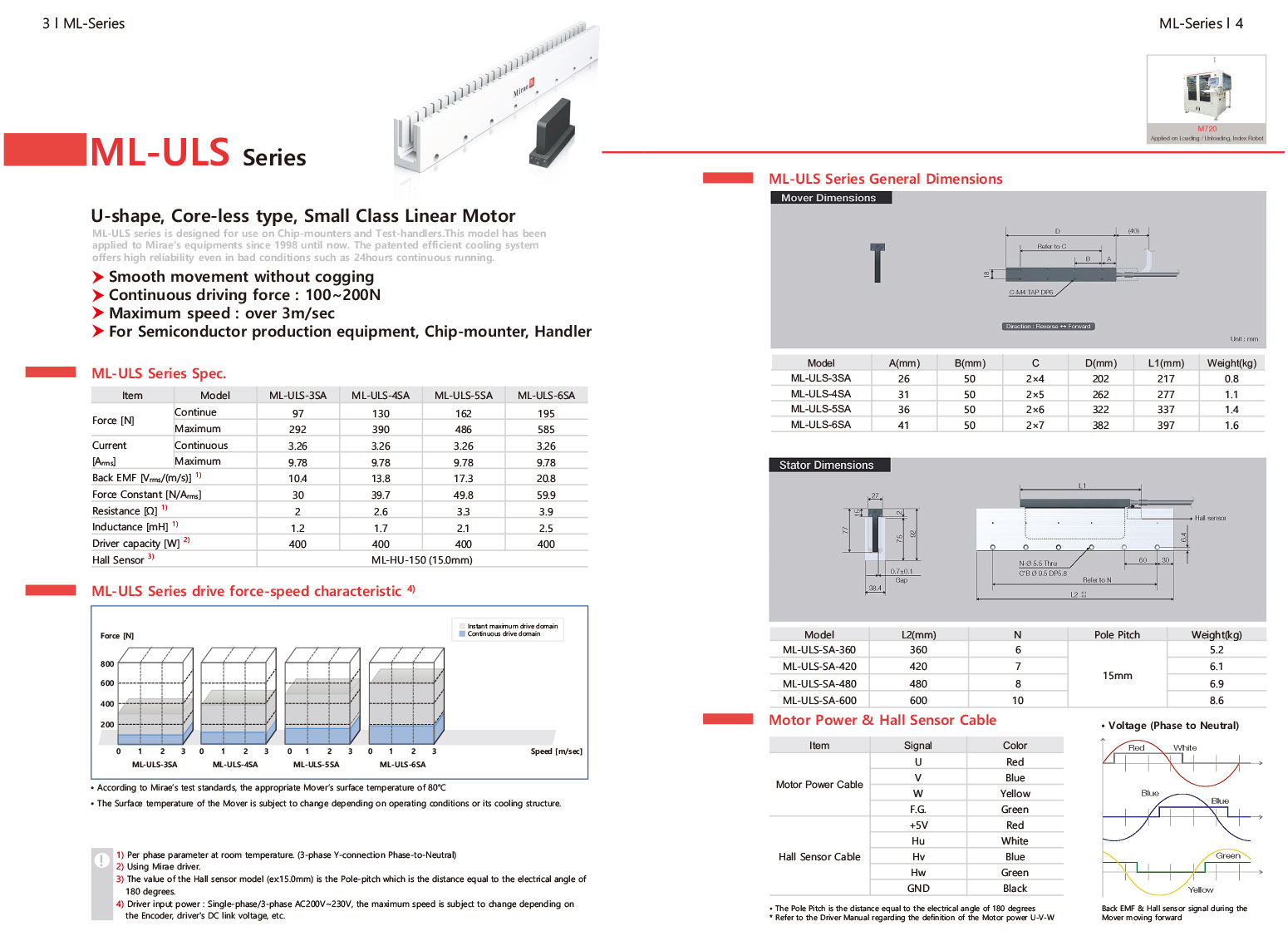

02ML-ULS Series
U-shape, Core-less type, Small Class Linear Motor
- ML-ULS series is designed for use on Chip-mounters and Test-handlers. This model has been applied to Mirae's equipments since 1998 until now. The patented efficient cooling system offers high reliability even in bad conditions such as 24hours continuous running.
- - Smooth movement without cogging
- - Continuous driving force : 100~200N
- - Maximum speed : over 3m/secc
- - For Semiconductor production equipment, Chip-mounter, Handler

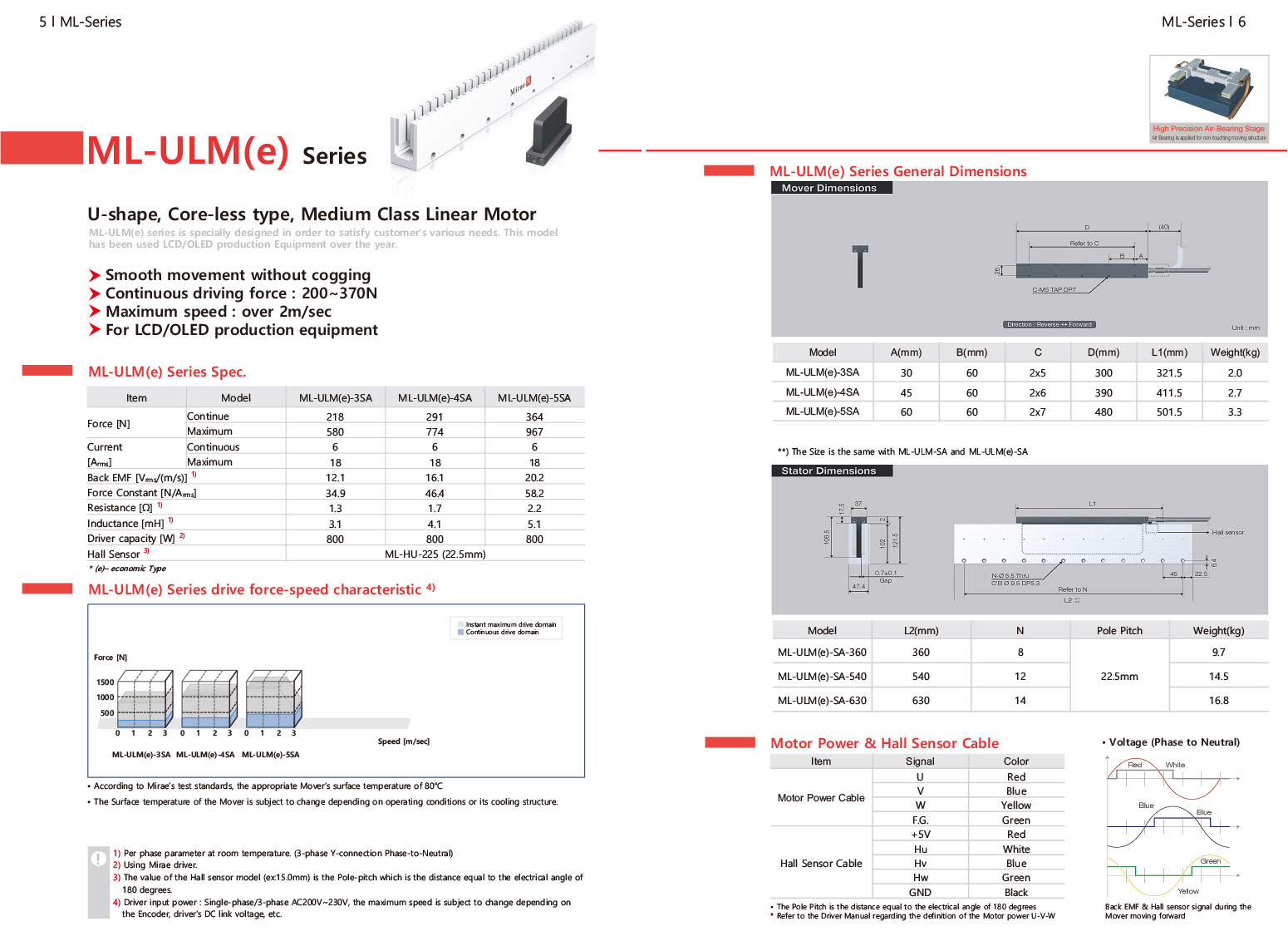

03ML-ULM(e) Series
U-shape, Core-less type, Medium Class Linear Motor
- ML-ULM(e) series is specially designed in order to satisfy customer's various needs. This model has been used LCD/OLED production Equipment over the year.
- - Smooth movement without cogging
- - Continuous driving force : 200~370N
- - Maximum speed : over 2m/sec
- - For LCD/OLED production equipment

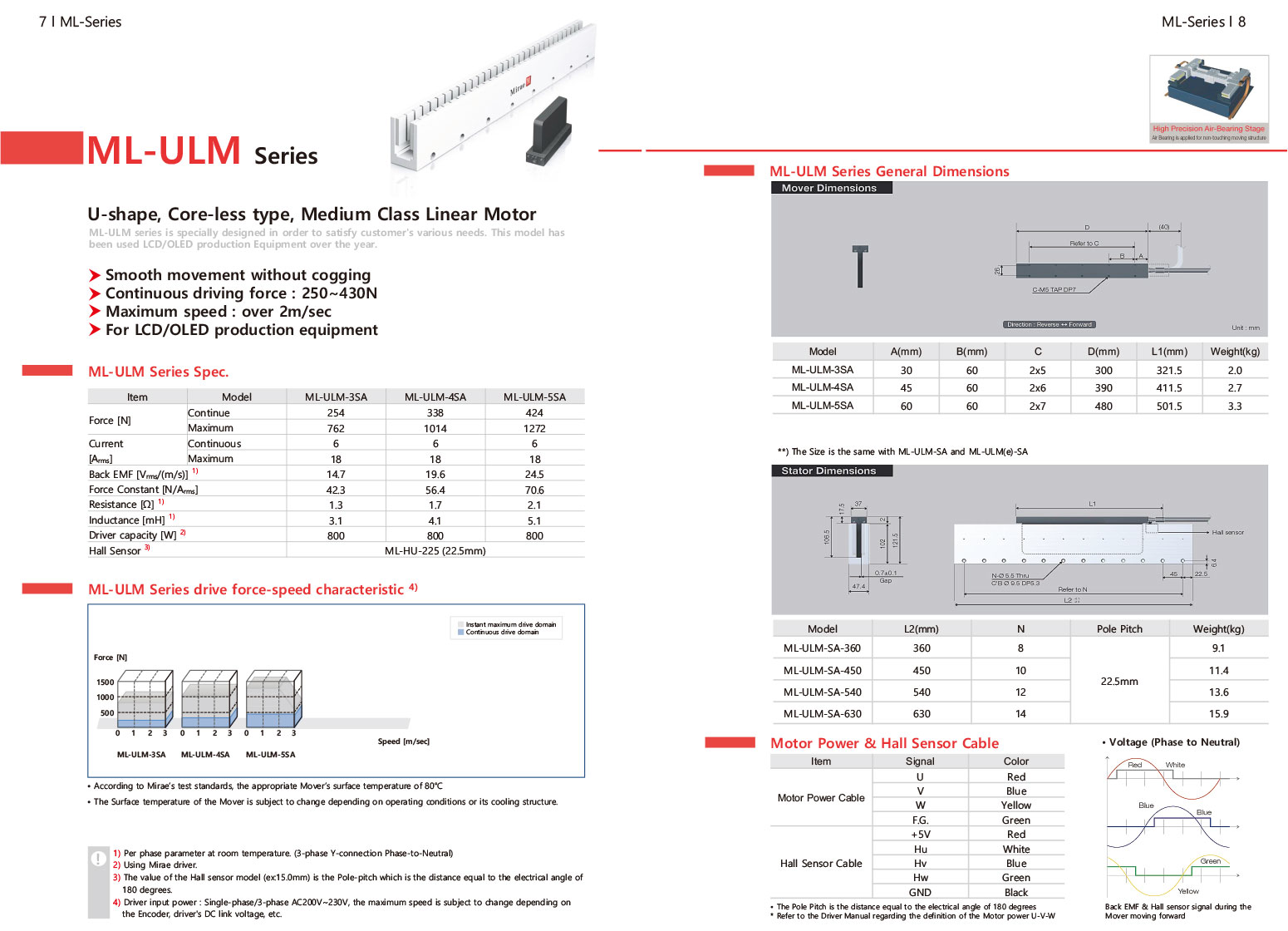

04ML-ULM Series
U-shape, Core-less type, Medium Class Linear Motor
- ML-ULM series is specially designed in order to satisfy customer's various needs. This model has been used LCD/OLED production Equipment over the year.
- - Smooth movement without cogging
- - Continuous driving force : 250~430N
- - Maximum speed : over 2m/sec
- - For LCD/OLED production equipment

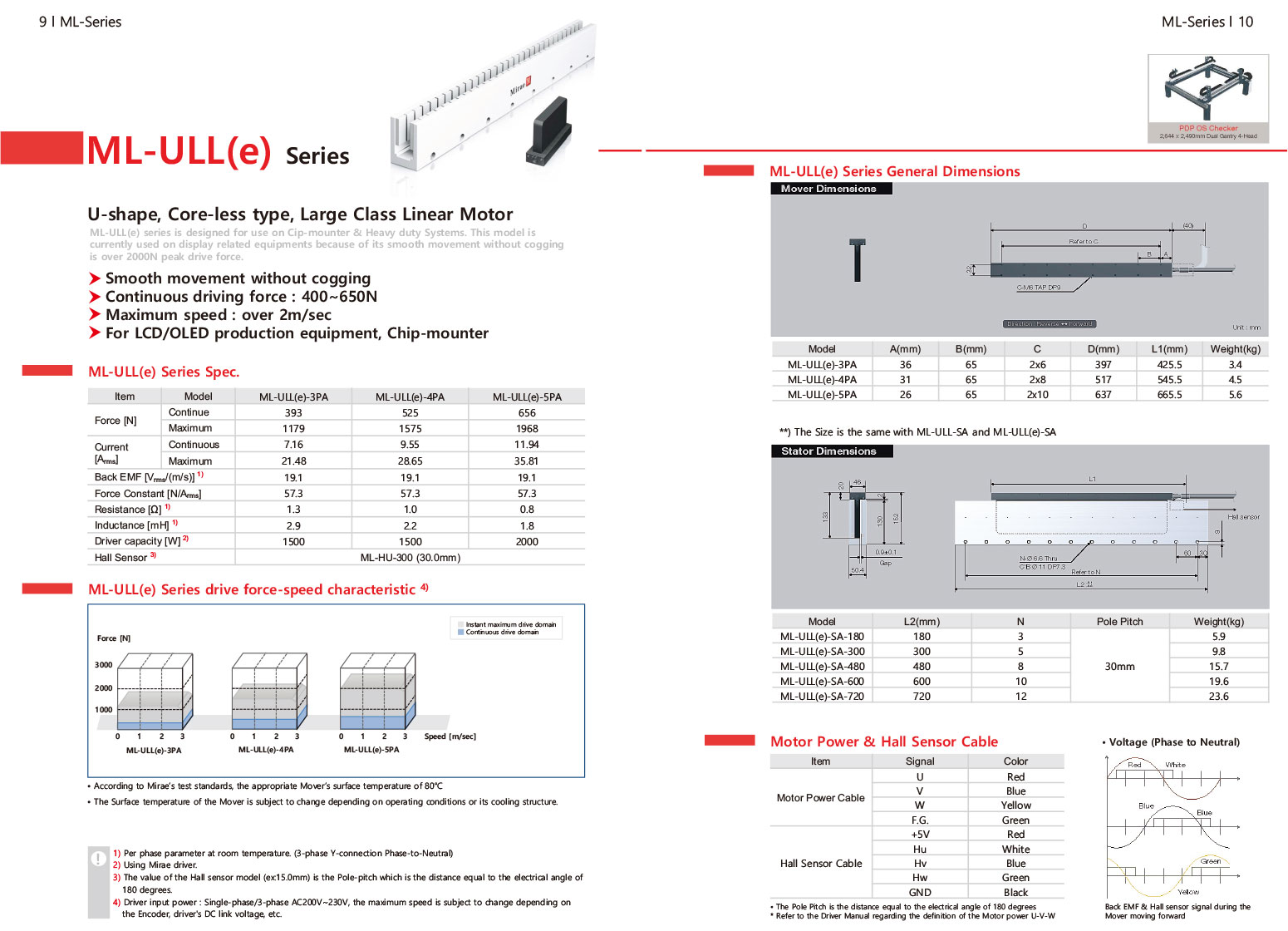

05ML-ULL(e) Series
U-shape, Core-less type, Large Class Linear Motor
- ML-ULL(e) series is designed for use on Cip-mounter & Heavy duty Systems. This model is currently used on display related equipments because of its smooth movement without cogging is over 2000N peak drive force.
- - Smooth movement without cogging
- - Continuous driving force : 400~650N
- - Maximum speed : over 2m/sec
- - For LCD/OLED production equipment,
Chip-mounter
06ML-ULL Series
U-shape, Core-less type, Large Class Linear Motor
- ML-ULL series is designed for use on Cip-mounter & Heavy duty Systems. This model is currently used on display related equipments because of its smooth movement without cogging is over 2500N peak drive force.
- - Smooth movement without cogging
- - Continuous driving force : 500~850N
- - Maximum speed : over 2m/sec
- - For LCD/OLED production equipment,
Chip-mounter
07ML-ULX(e) Series
U-shape, Core-less type, Xtra large Class Linear Motor
- ML-ULX(e) is designed for use on Heavy duty systems, such as big size LCD/OLED/SOLAR production equipment. This model is currently used on display related equipments because of its smooth movement without cogging.
- - Smooth movement without cogging
- - Continuous driving force : 700~1,400N
- - Maximum speed : over 2.5m/sec
- - For heavy duty systems, such as
LCD/OLED/SOLAR equipment

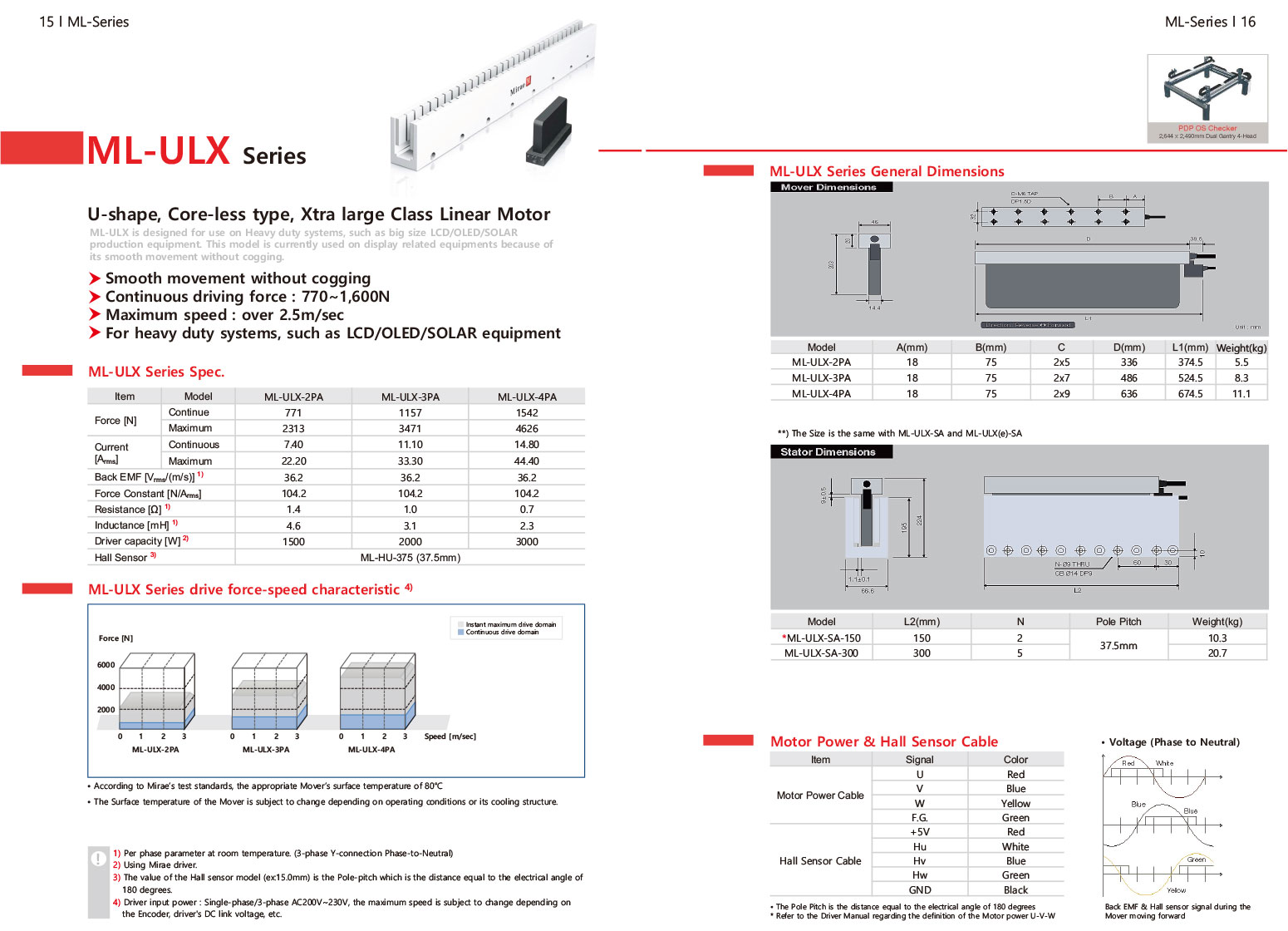

08ML-ULX Series
U-shape, Core-less type, Xtra large Class Linear Motor
- ML-ULX is designed for use on Heavy duty systems, such as big size LCD/OLED/SOLAR production equipment. This model is currently used on display related equipments because of its smooth movement without cogging.
- - Smooth movement without cogging
- - Continuous driving force : 770~1,600N
- - Maximum speed : over 2.5m/sec
- - For heavy duty systems, such as
LCD/OLED/SOLAR equipment
