U-Coreless Type

ML-ULT

ML-ULS

ML-ULM(e)

ML-ULM

ML-ULL(e)

ML-ULL

ML-ULX(e)

ML-ULX

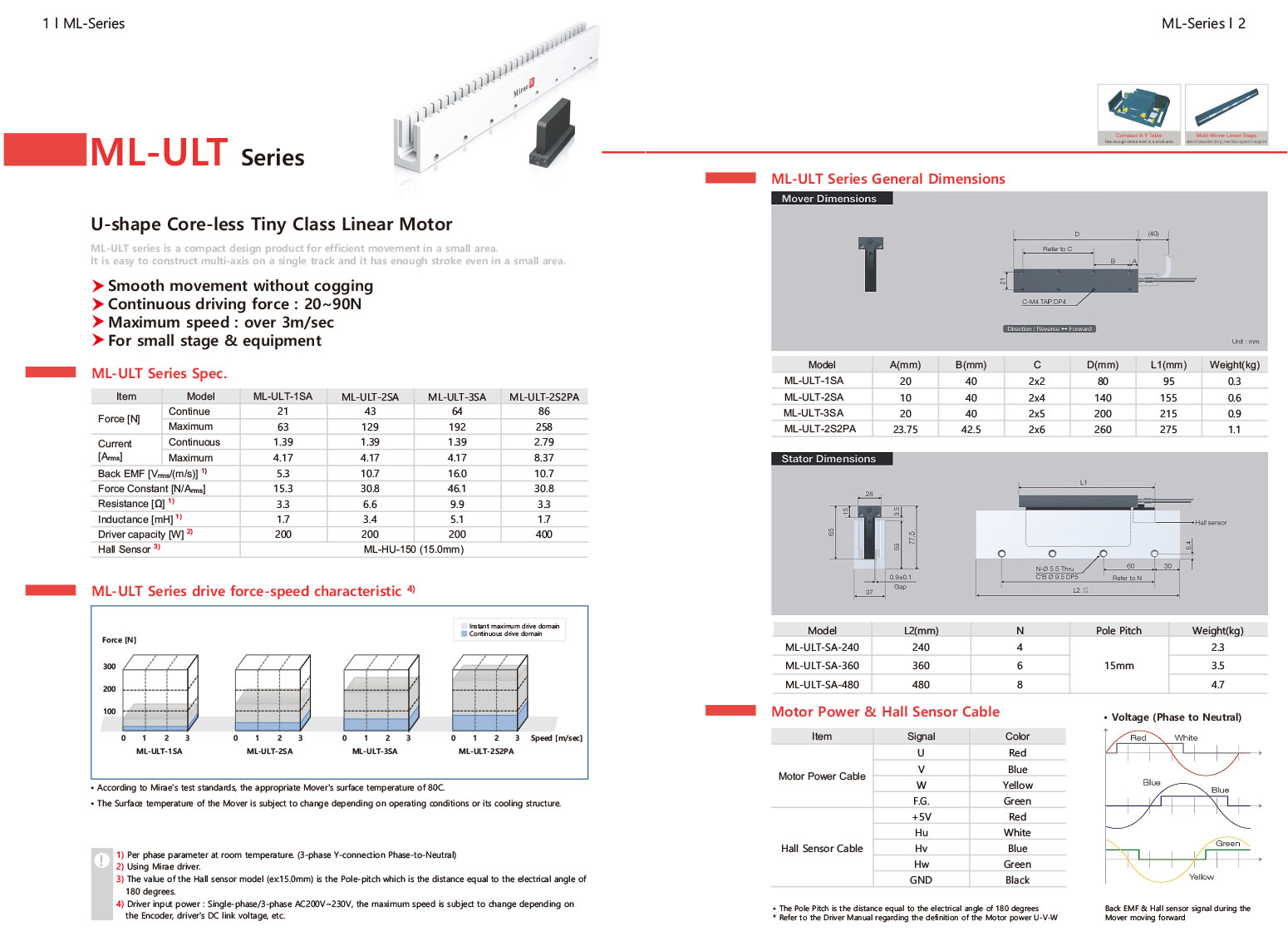

01ML-ULT Series

U-shape Core-less Tiny Class Linear Motor

ML-ULT series is a compact design product for efficient movement in a small area. It is easy to construct multi-axis on a single track and it has enough stroke even in a small area.
- Smooth movement without cogging
- Continuous driving force : 20~90N
- Maximum speed : over 3m/sec
- For small stage & equipment

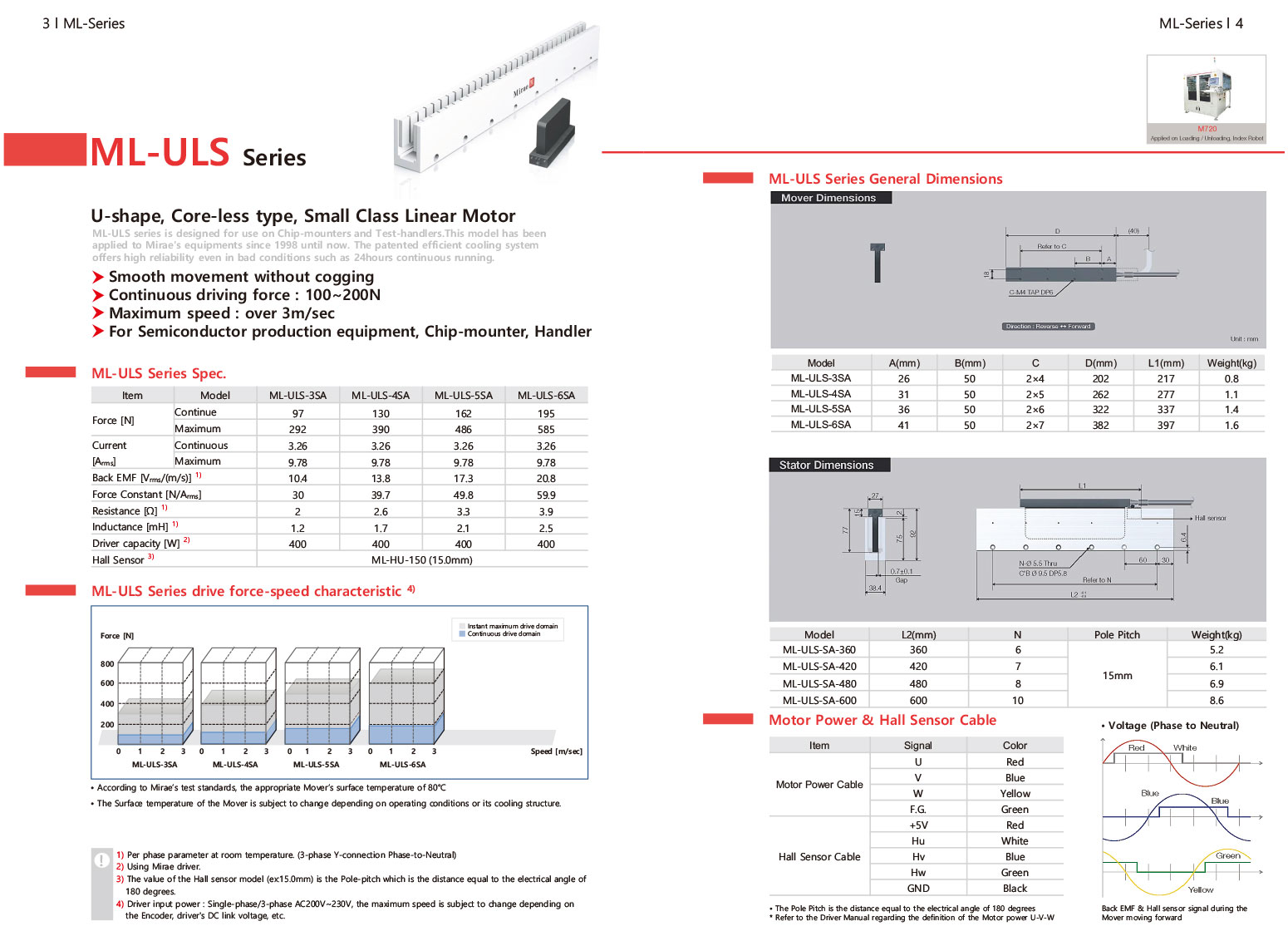

02ML-ULS Series

U-shape, Core-less type, Small Class Linear Motor

ML-ULS series is designed for use on Chip-mounters and Test-handlers. This model has been applied to Mirae's equipments since 1998 until now. The patented efficient cooling system offers high reliability even in bad conditions such as 24hours continuous running.
- Smooth movement without cogging
- Continuous driving force : 100~200N
- Maximum speed : over 3m/secc
- For Semiconductor production equipment, Chip-mounter, Handler

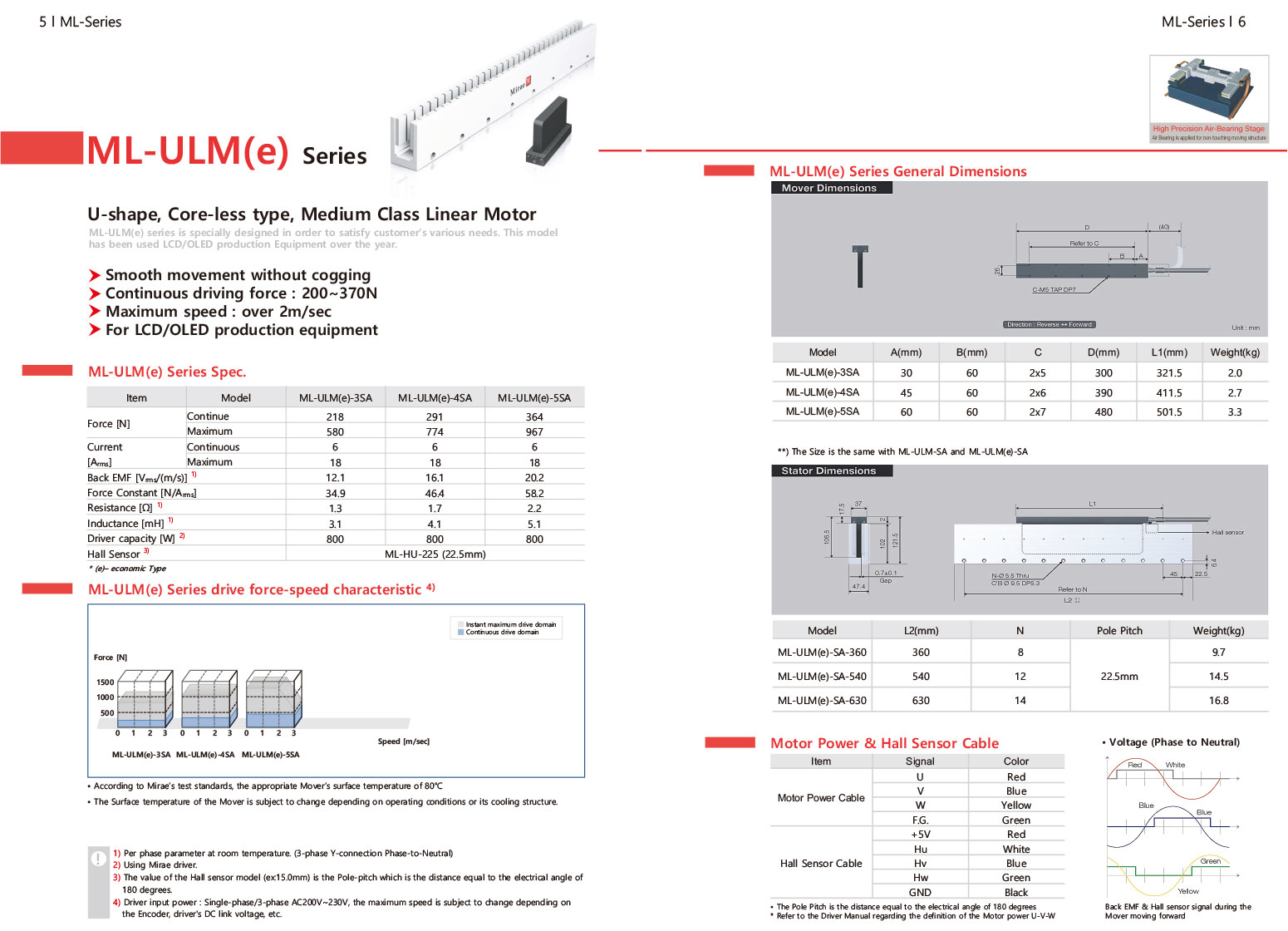

03ML-ULM(e) Series

U-shape, Core-less type, Medium Class Linear Motor

ML-ULM(e) series is specially designed in order to satisfy customer's various needs. This model has been used LCD/OLED production Equipment over the year.
- Smooth movement without cogging
- Continuous driving force : 200~370N
- Maximum speed : over 2m/sec
- For LCD/OLED production equipment

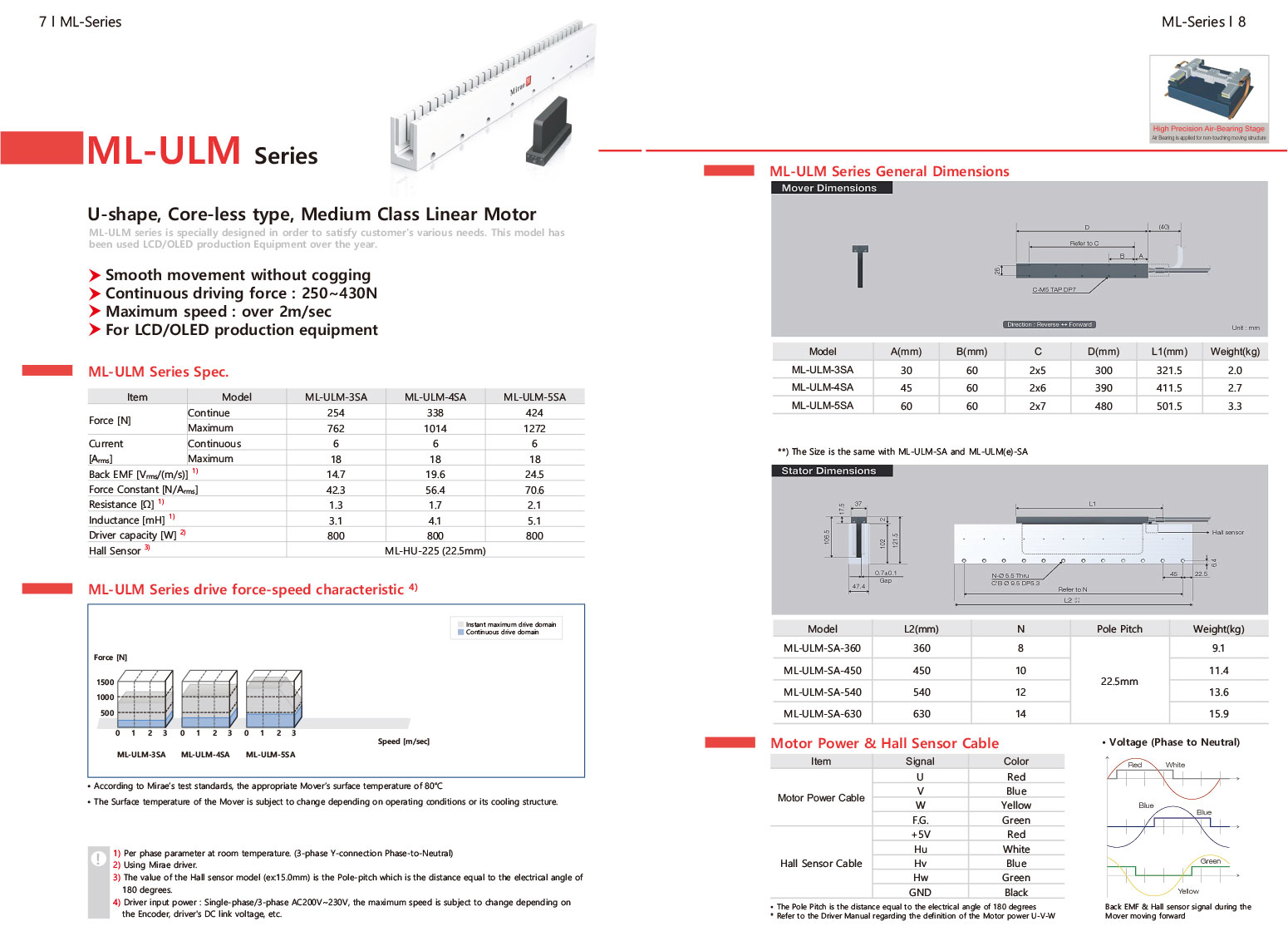

04ML-ULM Series

U-shape, Core-less type, Medium Class Linear Motor

ML-ULM series is specially designed in order to satisfy customer's various needs. This model has been used LCD/OLED production Equipment over the year.
- Smooth movement without cogging
- Continuous driving force : 250~430N
- Maximum speed : over 2m/sec
- For LCD/OLED production equipment

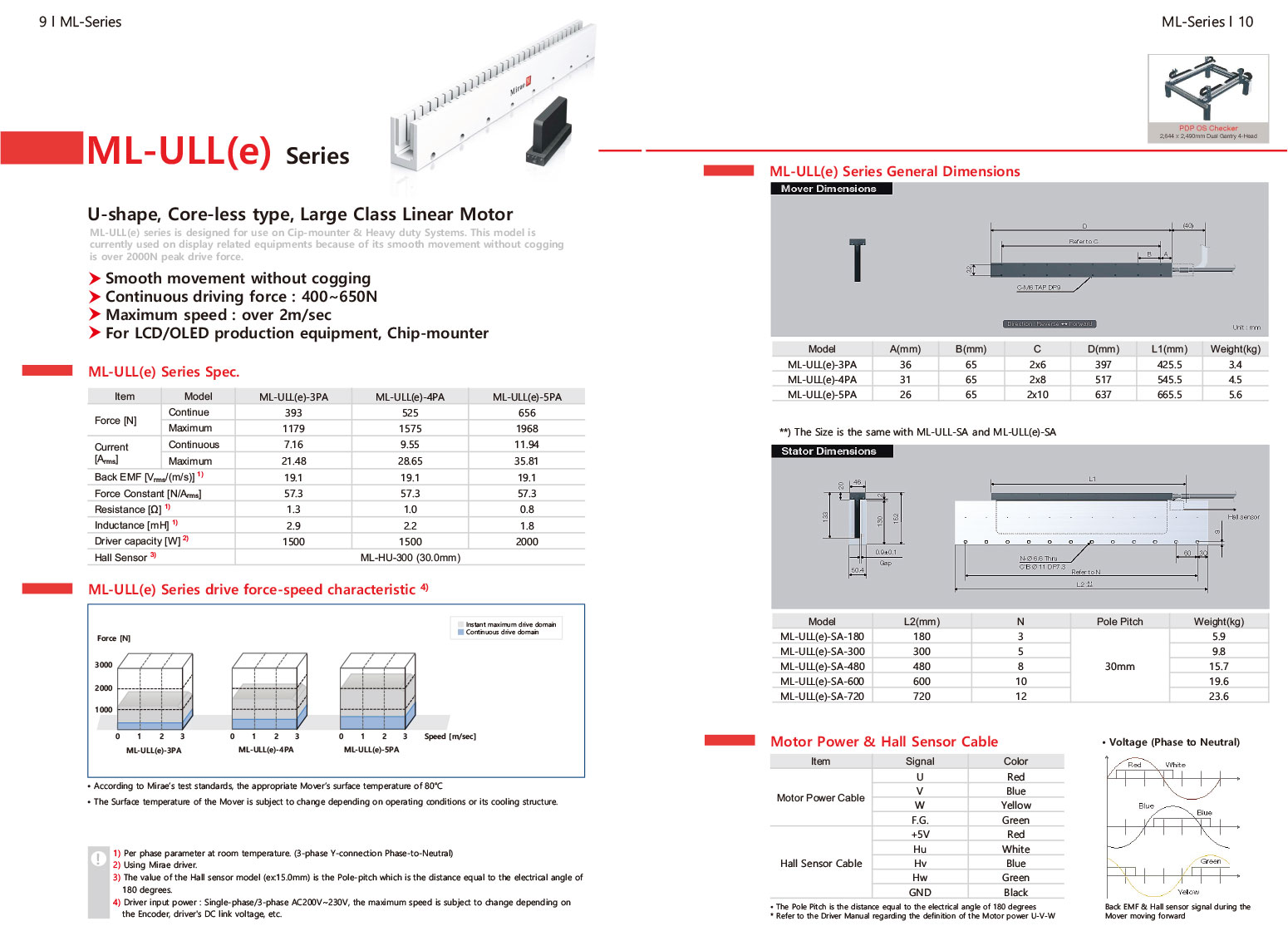

05ML-ULL(e) Series

U-shape, Core-less type, Large Class Linear Motor

ML-ULL(e) series is designed for use on Cip-mounter & Heavy duty Systems. This model is currently used on display related equipments because of its smooth movement without cogging is over 2000N peak drive force.
- Smooth movement without cogging
- Continuous driving force : 400~650N
- Maximum speed : over 2m/sec
- For LCD/OLED production equipment,
Chip-mounter

06ML-ULL Series
