ATE(Test Handler)

We will be a company that secures and leads with the best technologies.

Staff by department - Tel 041-559-8824/010-8368-7900 Fax 041-559-8738 Email atesales@mirae.com

Memory Test Handler

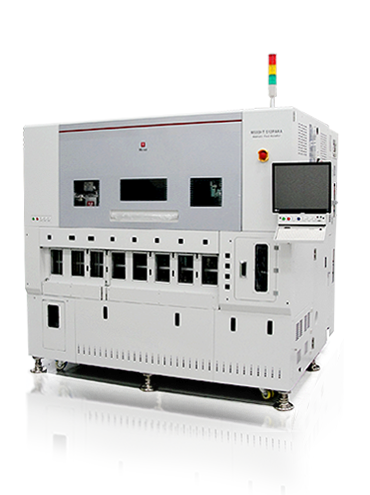

M500HT
M500HT Series 이미지
  • Maximized Productivity with 512 Parallelism
  • Accurate temperature test possible through
    temperature control accuracy of ±1.0℃
  • Optimized Handler solution for Memory Test process
spec버튼 movie버튼
M500HT
spec
Item Specification
Docking Type (Vertical Docking Test Handler)
Parallel ( Single Test head) 512
UPH 40,960 (1Bin)
Jam Rate 1/25,000
Temp Control Range -40℃ ~ +125℃
min. device ball pitch >0.35mm
ball edge to package edge clearance >0.3mm
Min & Max Package size 6x6 ~ 12x12mm (Square)
Up to 12x20mm (Rectangular)
Min/Max Package Thickness ( include balls) 0.8-1.8mm
Target Package TSOP, TQFP, BGA, MCP, POP
CSP(μBGA, fBGA, QFN), etc.
취소버튼

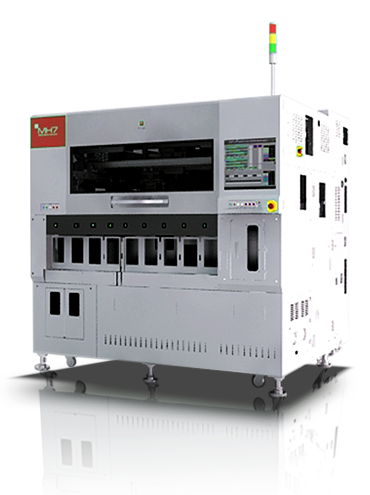

MH7
MH7 이미지
  • Maximized Productivity with 768 Parallelism for the Nand Flash
  • Auto Teaching using vision installed in P&P Heads
  • Higher utilization rate by reducing temperature stablization time
spec버튼 movie버튼
취소버튼
MH7
ate_MH7
spec
Item Specification
Docking Type Vertical Docking Test Handler
Parallel ( Single Test head) 768
UPH 36,800 (1Bin)
Jam Rate 1/30,000
Temp Control Range -40℃ ~ +125℃
min. device ball pitch >0.35mm
ball edge to package edge clearance >0.3mm
Min & Max Package size 6x6 ~ 12x12mm (Square)
Up to 12x20mm (Rectangular)
Min/Max Package Thickness ( include balls) 0.8-1.8mm
Target Package TSOP, TQFP, BGA, MCP, POP, etc.
cancel

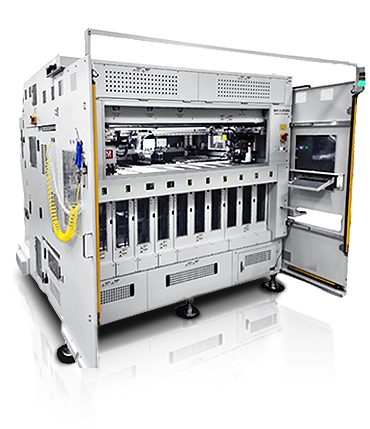

MH5
MH5
  • Factory Automation ready (OHT)
  • Exchanger Auto Teaching Vision
  • Unloading 3D Vision check
  • Auto Contact Force
  • Self-Diagnosis Program
spec버튼
MH5
spec
Items Spec.
Type OHT(OVERHEAD HOIST TRANSPORT) Type
Docking Type Vertical Docking Test Handler
PARA 512
UPH 40,960(1Bin)
Jam Rate 1/50,000
Temp Control Range -40℃ ~+125℃ (-55℃ to 150℃ Option)
Min.Device Ball Pitch >0.275 (0.3↓ Filim Type Use)
Ball Edge to Package Edge Clearance >0.3mm
Min & Max Package Size 6x6 ~12x12 (Square) / 12x20(Rectangle)
Min & Max Package Thickness(include balls) 0.8~1.8mm
Target Package TSOP. TQFP. BGA. MCP. TSOP. POP. CSP. Etc…
Option Auto Teaching / 3D Vision / 2DID / Auto Contact Fine/ ATC / DiAGNOSIS
취소버튼
