Module Test Handler

MR7500Series

MR7500
MR7500

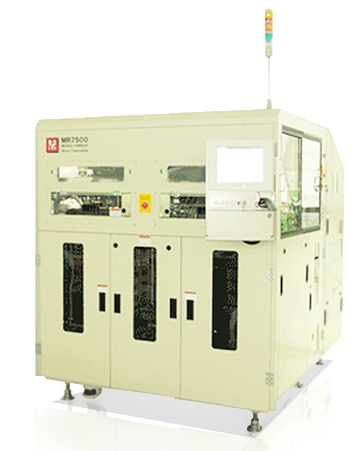

MR7500 image
  • High Performance & Productivity
  • - Tri-temp control : -10℃ ~ +125℃
  • - Max 16 parallel Test
      (16 *para 1 step / 8 para 2steps)
  • - Throughput : 2,000 UPH
  •
  • High Versatility
  • - Versatile interface kit: T5365, T5581, T5591,
      AL6080, AL6090, HP95000 etc
  • - Various Module test: 72 ~ 240 pins DIMM/RIMM
spec button movie button
취소 button
MR7500
ate_MR7500
spec
Item Specification
Parallelism 16 parallel 1 step, 8 parallel 2 steps
Throughput(UPH) 2000 UPH
Jam rate 1/1000
Docking testers MR7300 & HP95000 & AL6090
Target device 72 ~ 232 pins, DIMM/RIMM
164mm(L) ´ 58mm(H) ´ 1.27mm(T)
Temperature control Range Tri-Temp : -10 °C ~ +125 °C
Loading & Unloading 9 trays
Multi stacker(Bins) 4 trays(22 Modules/tray)
Carrier 15 mm pitch, 16 modules
Socket pitch 15 mm (16 para) , 30 mm (8 para)
Tray (input/output) Mirae Tray (15mm) /Customer Tray(10, 15mm)
Machine Size (mm)
W x D x H 		 1,980 × 1,670 × 1,950
