Burn-In Sorter

M850 Series

M850A
M850iSeries

M850i
M850SSeries

M850S

MB8iSeries

MB8i
MB8SSTSeries

MB8SST
MB10SMSeries

MB10SM

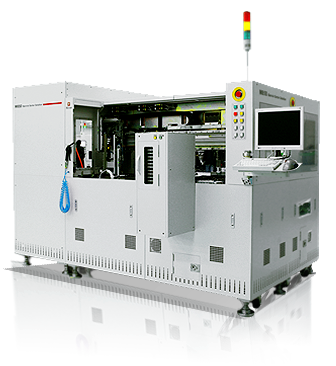

M850A
M850 이미지
  • Price competitiveness compared to its productivity
  • BIB Turn Table (-90 degree rotation)
  • Tray mis-orientation protection
  • BIB ID read possbile
    (both electric & BCR type can be used)
spec버튼 movie버튼
cancel
M850
ate_M850
spec
Item Specification Remarks
Target Device TSOP, BGA, LQFP, VQFN
Throughput
(Loading & Unloading Only)		 Loading Mode : Max 20,000 UPH
Unloading Mode : Max 20,000 UPH		 No Sorting, No Test,
16 x 16 BIB,
Standard Socket
XxY JEDEC Tray
Loading / Unloading
JEDEC Tray Capacity		 60
Sorting Category Max 16 Hardware Bins 3 Manual Bin
12 Multi-Tray Stacker
1 Good Bin
Device Rotation -90 degree rotation
BIB HD, Ando
BIB Rack 12 Steps / 2 Rack Max 15 steps
Online Interface SECS & GEM
Machine Size (mm)
W x D x H		 2,470 × 1,600 × 1,880 excluding signal tower
& multi-tray stacker
cancel

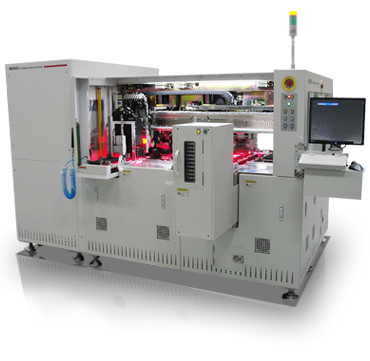

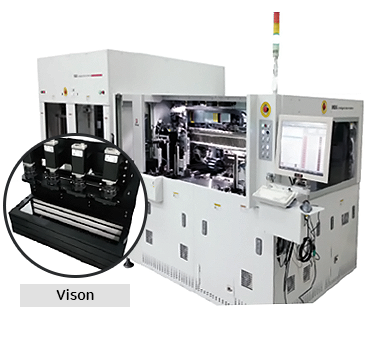

M850i
M850i 이미지
  • BIB ID read possible
    (both electric & BCR type can be used)
  • Improved efficiency using vision inspection in BIB & C-Tray
spec버튼 movie버튼
cancel
M850i
ate_M850i
spec
Item Specification Remarks
Target Device TSOP, BGA, LQFP, VQFN
Throughput
(Loading & Unloading Only)		 Loading Mode : Max 20,000 UPH
Unloading Mode : Max 20,000 UPH 		No Sorting, No Test,
16 x 16 BIB,
Standard Socket
XxY JEDEC Tray
Loading / Unloading
JEDEC Tray Capacity 		60
Sorting Category Max 16 Hardware Bins 3 Manual Bin
12 Multi-Tray Stacker
1 Good Bin
Device Rotation BIB Table Rotation -90 degree rotation
BIB HD, Ando
BIB Rack 12 Steps / 2 Rack Max 15 steps
Online Interface SECS & GEM
Machine Size (mm)
W x D x H		 2,820 × 2,070 × 1,880 excluding signal tower
cancel

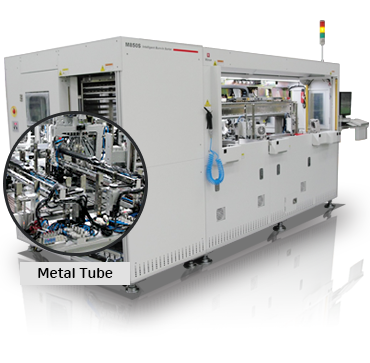

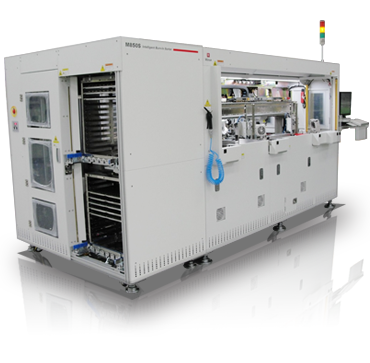

M850S
M850S 이미지
  • Both JEDEC tray + Tube(Metal) loading & unloading can be used
  • BIB ID read possible
    (both Electric & BCR type can be used)
spec버튼 movie버튼
cancel
M850S
ate_M850S
spec
Item Specification Remarks
Target Device TSOP, BGA, LQFP, VQFN
 Throughput - JEDEC Tray
(Loading & Unloading Only) 　　		 Loading Mode : Max 20,000 UPH
Unloading Mode : Max 20,000 UPH  　　		 No Sorting, No Test,
16 x 16 BIB
Standard Socket
 XxY JEDEC Tray basis
 Throughput - Metal tube
(Loading & Unloading Only) 		 Loading Mode: Max 9,000 UPH
Unloading Mode : Max 9,000 UPH  		  No Sorting, No Test
SOIC 16 device basis
 Loading / Unloading
JEDEC Tray Capacity 		 60 　
 Sorting Category  Max 4 Hardware Bins  1 Reject Bin
2 Retest Bin
1 Good Bin
 Device Rotation  BIB Table Rotation
-90 degree rotation 		 　
 BIB  HD, Ando  　
 BIB Rack  12 Steps / 2 Rack  Max 15 slots
 Online Interface  SECS & GEM  　
 Machine Size (mm)
W x D x H 		 3,380 × 1,870 × 1,880  excluding signal tower
cancel
MB8i
MB8i
  • C-Tray/BIB Vision Inspection System Option
  • Auto Teaching & Align Option
  • Power Recovery
  • 1D or 2D Barcode BIB ID reading
  • Auto Trolley Docking system: Dual trolley docking option
  • Ethernet communication method adopted
  • UPH: Up to 15,000
  • Parallelism: 10 Para
spec
MB8i
MB8i
spec
  Item Spec
Performance Target Device TSPO, BGA, LQFP, VQFN
Parallelism 10 Para
UPH about 15,000 UPH
(No Sorting & Test)
Sorting Category 1 Good Bin, 2 Hardware Bins
Device rotate (BIB Table Rotation, 90 degree)
JEDEC Tray Capacity 60 (Loading & Unloading)
BIB HD & Ando
BIB Rack 24 Steps / 2 Trolley
Outline Interface SECS & GEM
BIB ID Barcode 1D & 2D
Size Foot Print (Unit: mm) 4,388 x 2,268 x 2,140
Weight 4,000KG
cancel
MB8SST
MB8SST
  • Stick Feeder Applicable
  • 1D or 2D BIB ID recognition
  • C-Tray: Equipped with device lifting prevention function
  • Device 2D Barcode Reading available
  • Ethernet communication method adopted
  • UPH: Up to 15,000
  • Parallelism: 8 Para
spec
MB8SST
MB8SST
spec
  Item Spec
Performance Target Device TSPO, BGA, LQFP, VQFN
Parallelism 8 Para
UPH About 15,000 UPH
(No Sorting & Test)
Sorting Category 1 Good Bin, 2 Hardware Bins
Device Rotate (BIB Table Rotation, 90 degree)
JEDEC Tray Capacity 60 (Loading & Unloading)
BIB HD & Ando
BIB Rack 12 Steps / 2 Rack
(Max. 15 Step)
Outline Interface SECS & GEM
BIB ID Barcode 1D & 2D
Size Foot Print (Unit: mm) 3,690 x 1,970 x 1,980
Weight 3,500KG
cancel
MB10SM
MB10SM
  • BIB pitch correction function (Laser)
  • BIB ID barcode reading function (applicable to both 1D/2D)
  • Auto Trolley Docking system: Dual trolley docking option
  • C-Tray/BIB Vision Inspection System Option
  • GFM: Real-time monitoring of ground resistance
  • Multilot function
  • Ethernet communication method adopted
  • UPH: Up to 15,000
  • Parallelism: 10 Para
spec
MB10SM
MB10SM
spec
  Item Spec
Performance Target Device TSPO, BGA, LQFP, VQFN
Parallelism 10 Para
UPH About 15,000 UPH
(No Sorting & Test)
Sorting Category 1 Good Bin, 2 Hardware Bins
Device Rotate (BIB Table Rotation, 90degree)
JEDEC Tray Capacity 60 (Loading & Unloading)
BIB HD & Ando
BIB Rack 24 Steps / 2 Trolley
Outline Interface SECS & GEM
BIB ID Barcode 1D & 2D
Size Foot Print (Unit: mm) 4,356 x 1,945 x 2,140
Weight 4,000KG
cancel
