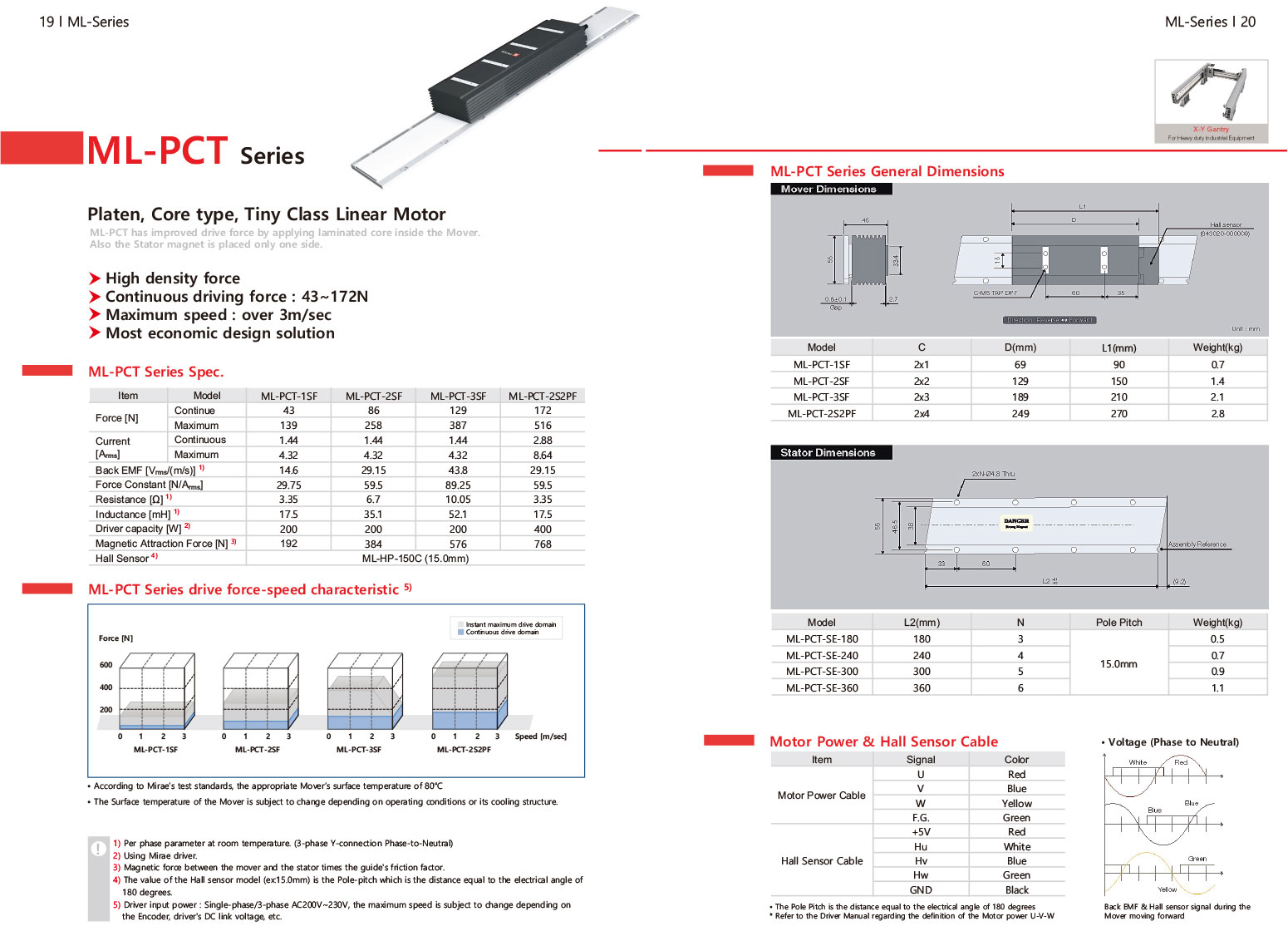

01ML-PCT 系列

Platen, Core type, Tiny Class Linear Motor

ML-PCT 系列
  • ML-PCT has improved drive force by applying laminated core inside the Mover. Also the Stator magnet is placed only one side.
  •
  • - High density force
  • - Continuous driving force : 43~172N
  • - Maximum speed : over 3m/sec
  • - Most economic design solution
catalog
02ML-PCS 系列

Platen, Core type, Small Class Linear Motor

ML-PCS 系列
  • ML-PCS series has the most improved drive force by applying laminated core inside the Mover. Also the Stator magnet is placed only on one side : therefore, the cost of this system is lower compared to the U-shape Linear Motors.
  •
  • - High density force
  • - Continuous driving force : 150~400N
  • - Maximum speed : over 2m/sec
  • - Most economic design solution
catalog

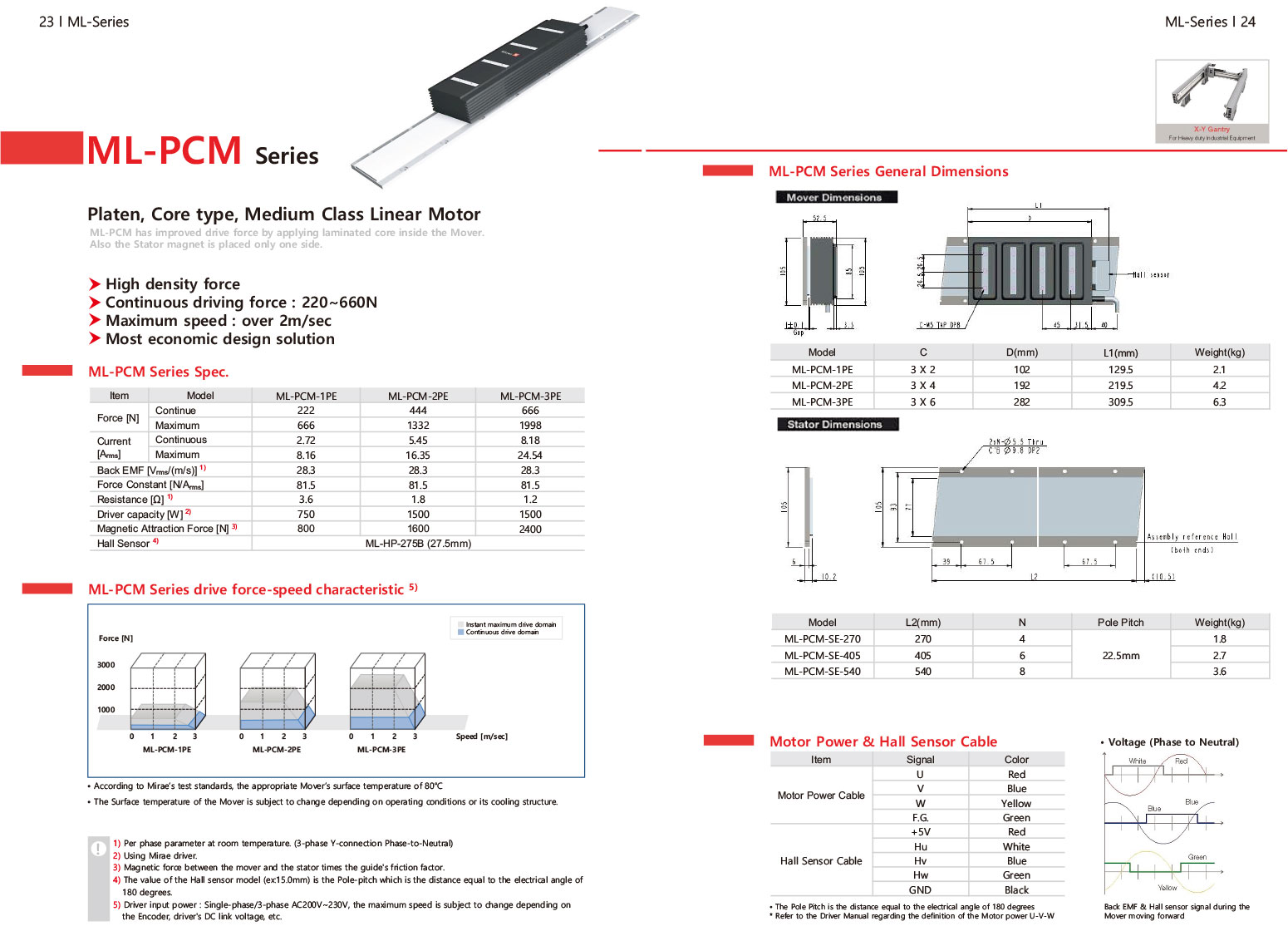

03ML-PCM 系列

Platen, Core type, Medium Class Linear Motor

ML-PCM 系列
  • ML-PCM has improved drive force by applying laminated core inside the Mover. Also the Stator magnet is placed only one side.
  •
  • - High density force
  • - Continuous driving force : 220~660N
  • - Maximum speed : over 2m/sec
  • - Most economic design solution
catalog

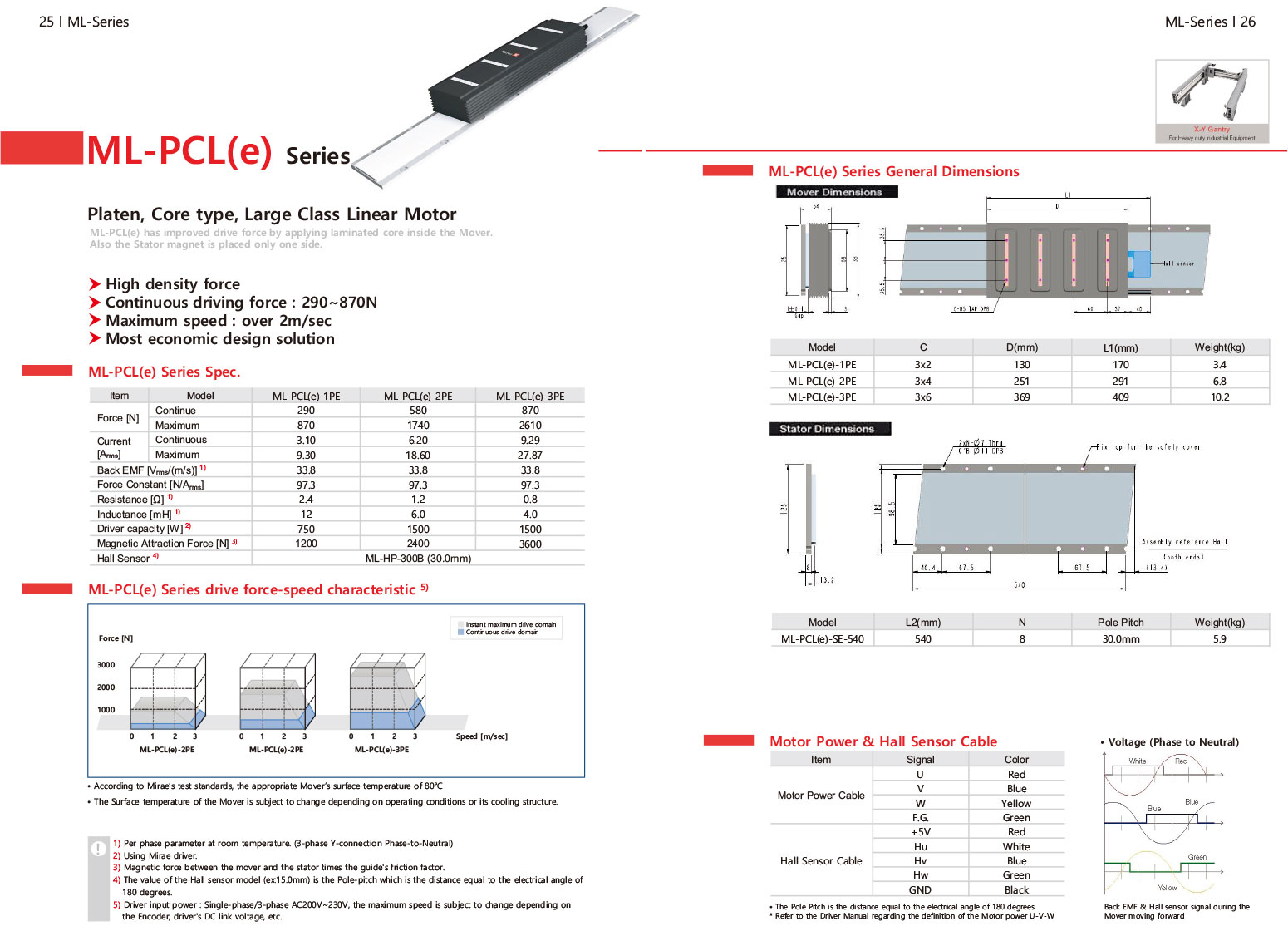

04ML-PCL(e) 系列

Platen, Core type, Large Class Linear Motor

ML-PCL(e) 系列
  • ML-PCL(e) has improved drive force by applying laminated core inside the Mover. Also the Stator magnet is placed only one side.
  •
  • - High density force
  • - Continuous driving force : 290~870N
  • - Maximum speed : over 2m/sec
  • - Most economic design solution
catalog
05ML-PCL 系列

Platen, Core type, Large Class Linear Motor

ML-PCL 系列
  • ML-PCL has improved drive force by applying laminated core inside the Mover. Also the Stator magnet is placed only one side.
  •
  • - High density force
  • - Continuous driving force : 335~1000N
  • - Maximum speed : over 2m/sec
  • - Most economic design solution
catalog
