Logic Test Handler

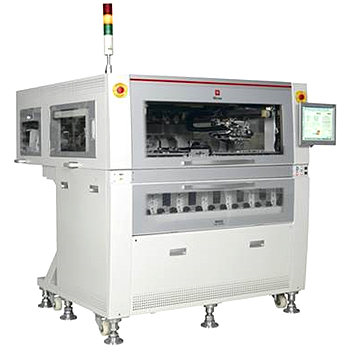

ML16

ML16
M620Series

M620
ML16
ML16
  • - Test Handler
  • - Package Size: 3x3 ~ 50x50 mm
  • - Electro-Pneumatic Regulator
  • - Vision System Applied
spec
cancel
ML16
ML16
spec
ITEM SPECIFICATION REMARKS
General parameter
Test Mode Hexadecimal 1x2, 1x4, 2x4, 2x8 Para
Package Size 3x3 ~ 50x50 mm
Target Packages All Kind
Dimension (WxDxH) 2,250 x 1,700 x 1,750 mm
Weight 2,000Kg
Socket Double Detect Vision
Test Interface GPIB, RS232C User I/O
(Option)
Power Source AC220V±10% / 50, 60Hz / Three Phase
Socket Pitch (mm) 40 x 57 Available
Docking Horizontal
Contact Force 480kg Force Control
Temperature Range & Accuracy * Ambient ~ +130℃ (±3℃) Hot Temp
Sorting Bin Auto Stacker 3
Manual Stacker 3
Stacker Capacity (Tray Quantity) Max. 45 Tray
cancel

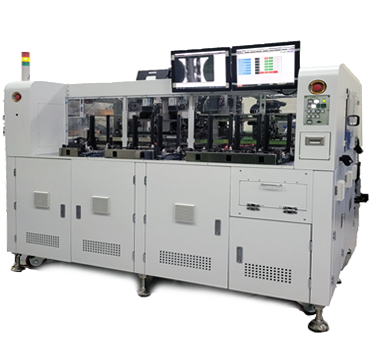

M620
M620 image
  • - Maximized Productivity
  • - Handles various device size
  • - Short conversion time
  • - Easy mantenance
  • - Minimized footprint
spec button
M620
ate_M620
spec
Item Specification
Package Types FBGA, PBGA, BGA, BOC, uLGA, ELP, POP, LPCC, WLP (etc)
Package Size 3x3 ~ 70x70 mm, T=0.8~5.0 mm
Throughput 7000 UPH
Parallelism(Test Mode) 1/2/4/8(Option) DUT
Thermal Performance +50℃ ~ +130℃ ±2℃
Index Time 0.5 sec
Tray Loading Capacity 20x2 Tray(2 Automatic Stacker)
Sorting BIN Capacity 6 BIN (3 Automatic Stacker, 3 Manual BIN)
Change Over Time Within 15 minutes
Power Requirement AC220V ±10%, Single Phase, 60Hz
Dimension 1540(W)x1600(D)x1600(H)
Weight 1200kg
