Application Test Handler

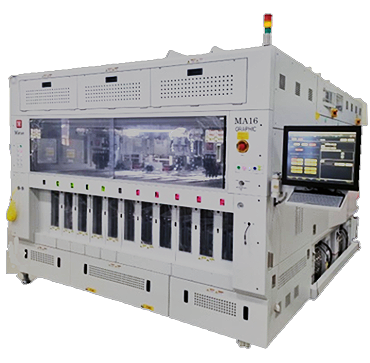

MA16
- - Graphic Component test handler
- - Target Device: GDDR6
- - Factory Automation ready
- - Auto teaching function
- - Auto rotary picker
MA16
| ITEM | SPEC | REMARK | |
|---|---|---|---|
| Performance | Parallel | 128 Para | graphic 1card = 8para → 16card/128para |
| Index Time | 10Sec | Pusher open > unloading > loading > close | |
| Cycle Time | 500Sec | ||
| Jam Rate | 1 / 5,000EA | ||
| Temp | -15℃ ~ 100℃ (Max Range) | Since it is a product that generates a lot of heat, it is estimated value of max based on Tcase | |
| -5℃ ~ 85℃ (Control Range) | Based on tCASE (measured temperature between device/pusher based on load) | ||
| Implementation of -8 degrees to 88 degrees based on the worst control range | |||
| Accuracy (±3.0) (t-CASE) | Control : ±2.0, Max : ±3.0 | ||
| Temp Up Down | 3min (at 25℃) | ||
| H/W | Target Device | Graphic component device | GDDR6 |
| AP Board | RTX3070 / Z370 | Dut block: COK | |
| (Consultation review of new items with customers) | |||
| L/D, U/L Stacker | 10EA or more (included) | Stacker : 30ea ( Max 65ea) | |
| Teaching check | auto checking | LD / ULD | |
| Equipment size (W,D,H) | 2680x3400x2200 | Sortig + Tester Split Type | |
| Picker | Auto Rotation Picker | Individual R-Axis and Up/Down / 4 Pickers | |
| Weight (kg) | 6.5t | Sortig + Tester Split Type | |
| Operating PC Specifications | WIN10 (industrial) | ||
