ATE(Test Handler)

最高の技術を保有しリードする企業を目指します。

部署別担当者のご案内 - Tel 041-559-8824/010-8368-7900 Fax 041-559-8738 Email atesales@mirae.com

Memory Test Handler Burn-In Sorter Burn-In Sorter Options Application Test Handler Logic Test Handler Module Test Handler Auto Scrap Chiller

Auto Scrap

MARS-T

MARS-T
MARS-CSeries

MARS-C
MARS-T
MARS-T
  • - Reject Device Auto Scrap Equipment
  • - OHC (Over Head Conveyor) Type
  • - C-Tray Cleaning & Vision Inspection
  • - Scrap Device 10Kg ↓ Automatic Discharge
spec
cancel

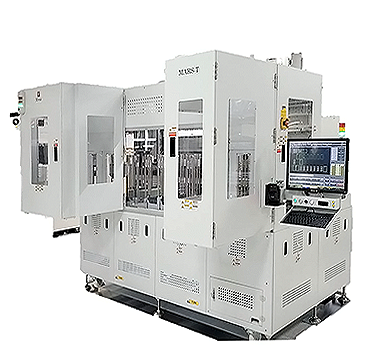

MARS-T
MARS-T
spec
ITEM SPECIFICATION
Type OHT Type
Dimension (WxDxH) 2,400 x 2,190 x 2,040 mm
Weight 2,000Kg
1Lot working Time
(Load~Unload)		 ≤ 90sec
UPH ≥ 30Lot
(1Lot = RFID+Cover+C-Tray 1EA)
Reject Scrap Method Diverter Concept
C-Tray Empty Inspection Method Vision
C-Tray Cleaning Method Air Cleaning
cancel
MARS-C

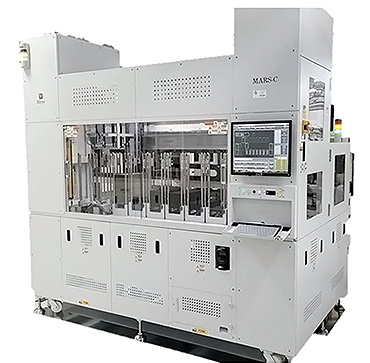

MARS-C image
  • - Maximized Productivity
  • - Handles various device size
  • - Short conversion time
  • - Easy mantenance
  • - Minimized footprint
spec button
MARS-C
ate_MARS-C
spec
Item Specification
Type OHC Type
Dimension (WxDxH) 2,500 x 1,580 x 2730 mm
Weight 2,000Kg
1Lot working Time
(Load~Unload)		 ≤ 90sec
UPH ≥ 30Lot
(1Lot = RFID+Cover+C-Tray 1EA)
Reject Scrap Method Diverter Concept
C-Tray Empty Inspection Method Vision
C-Tray Cleaning Method Air Cleaning
cancel button
