Chiller

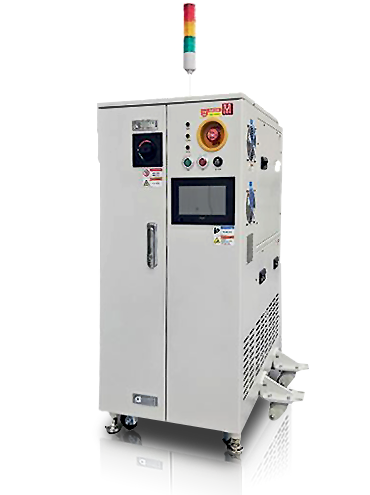

MHEX-08S
- - Accurate test environment control through precise temperature control of ±0.2℃
- - Compact size compared to multi-channel (10CH)
- - Minimize flow rate variation for each CH with a special piping branch system (within ±0.3LPM)
MHEX-08S
| NO | ITEM | SPECIFICATION | REMARK | |
|---|---|---|---|---|
| 1 | Refrigeration Type | HEAT EXCHANGER | ||
| 2 | Condensation Type | Water Cooling Type | ||
| 3 | Limit Temp. Range | 25℃ ~ 35℃ | ||
| 4 | Temp. Accuracy | ±0.2℃ | ||
| 5 | Cooling Capacity | 8kw (at 30 deg ℃) | ||
| 6 | Brine Flow Rate | Max 30 lpm | ||
| 7 | PCW Flow Rate | [18℃] 30lpm, 2kg/㎠ Minium | ||
| 8 | Reservoir Tank | 26ℓ | ||
| 9 | Coolant | FL-300 | ||
| 10 | Dimension | (W)500 X (D)800 X (H)1145 mm | ||
| 11 | Weight | 200Kg | ||
| 12 | Control | PID Control | ||
| 13 | Display | LCD TouchnScreen | ||
| 14 | Electric Power | 3P 220V 50/60Hz, Breaker : 30A | ||
| 15 | Communication | - | ||
| 16 | Main Parts | Pump | 1.5Kw | |
| Heater | 4Kw | |||
| 17 | Connection | Brine | Φ10 Lok Fitting | |
| Brine Drain | 3/8" Lock Ball Valve | |||
| PCW | 1/2" Lock Ball Valve | |||
| 18 | Room Temp | Performance is under environment temperature +25℃ | ||
